The best solution for achieving ideal photogrammetry lighting results.

The ESPER MultiFlash is the only photogrammetry lighting flash that allows you to control flash duration and intensity independently. Currently available as a part of the ESPER LightCage system. Specialist stand-alone lighting solution coming soon.
Join Waiting List
Array
(
    [0] => Array
        (
            [acf_fc_layout] => features_block
            [features] => Array
                (
                    [0] => Array
                        (
                            [icon] => flash-setup
                            [heading] => Total control for maximum creativity.
                            [content] =>

Equipped with 3 independently controllable, high-powered LED light sources the ESPER MultiFlash is the only photogrammetry lighting on the market that allows you to control flash duration and intensity independently, offset accurately and precisely synchronise with your camera system.

) [1] => Array ( [icon] => revolutionise [heading] => Revolutionise your flash set-up [content] =>

Whether you require one MultiFlash or 260. Whether you need every MultiFlash to all fire at the same time with the same intensity or for each MultiFlash to do something different. The ESPER MultiFlash has been designed from the ground up to be the most flexible, high-performance flashes around.

) [2] => Array ( [icon] => micro-second-sync [heading] => Microsecond synchronisation [content] =>

Achieve microsecond synchronisation with your camera system via the ESPER ControllerBoxes contact closure inputs and outputs or via Genlock.

) [3] => Array ( [icon] => programme [heading] => Programme, sequence and synchronise directly from your computer [content] =>

When coupled with a single ESPER’s ControllerBox and the ESPER LightController Software 512 MultiFlashes can be programmed, sequenced and synchronised directly from a PC or Mac. The ESPER ControllerBox has contact closure inputs and outputs (for DSLR and Machine Vision), genlock input (for video cameras) there are also data outputs for programming the lights.

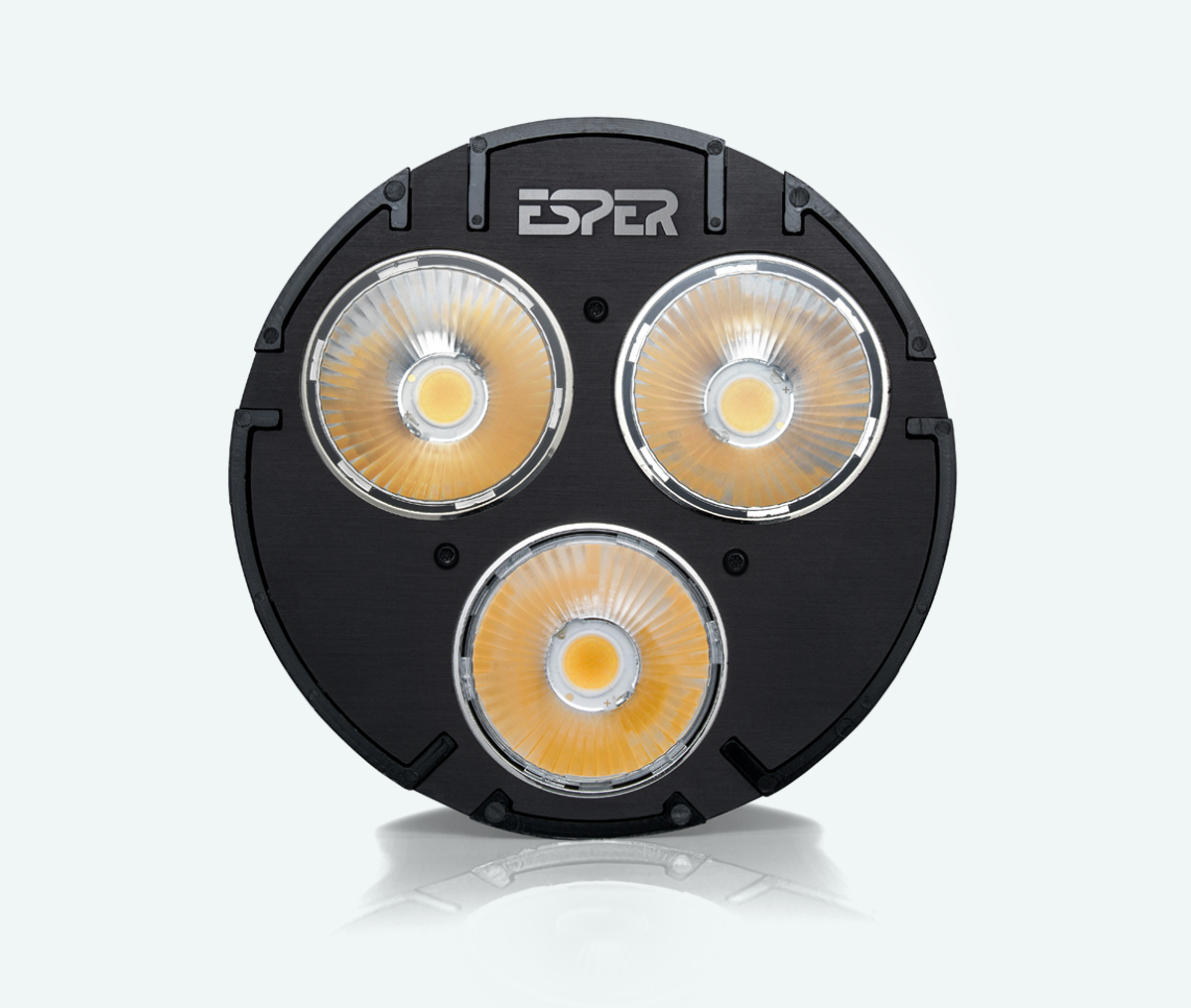

) ) ) [1] => Array ( [acf_fc_layout] => product_specs_block [specs] => Array ( [0] => Array ( [button_text] => Front [image_key_map] => {"image":"https://www.esperhq.com/wp-content/uploads/2018/04/Product-Images_0004_Multiflash-Side-A.jpg","height":1016,"width":1200,"annotations":[]} [specifications] => Array ( [heading] => Technical Spec [items] => Array ( [0] => Array ( [attribute] => Total Light Output [detail] => 2484 Lumen ) [1] => Array ( [attribute] => Colour Temperature (CCT) [detail] => 5000K ) [2] => Array ( [attribute] => Colour Rendering Index (CRI) [detail] => Typ 92 ) [3] => Array ( [attribute] => Beam angle [detail] => (FWHM) 16° ) [4] => Array ( [attribute] => Variable Flash Duration [detail] => 60µS to 30mS ) [5] => Array ( [attribute] => Power Input [detail] => 48VDC ) [6] => Array ( [attribute] => Peak Power Consumption [detail] => 70W ) [7] => Array ( [attribute] => Weight [detail] => 470g ) [8] => Array ( [attribute] => Enclosure [detail] => Impact resistant Makrolon Polycarbonate with 5251 Aluminium Face Plate ) [9] => Array ( [attribute] => Enclosure Finish [detail] => Matt Black Textured ) [10] => Array ( [attribute] => Face Plate Finish [detail] => Matt Black Anodised ) [11] => Array ( [attribute] => Power Input [detail] => 5VDC (250mA) ) ) [content] => ) ) [1] => Array ( [button_text] => Back [image_key_map] => {"image":"https://www.esperhq.com/wp-content/uploads/2018/04/Product-Images_0004_Multiflash-Side-B.jpg","height":1016,"width":1200,"annotations":[]} [specifications] => Array ( [heading] => Technical Spec [items] => Array ( [0] => Array ( [attribute] => Total Light Output [detail] => 2484 Lumen ) [1] => Array ( [attribute] => Colour Temperature (CCT) [detail] => 5000K ) [2] => Array ( [attribute] => Colour Rendering Index (CRI) [detail] => Typ 92 ) [3] => Array ( [attribute] => Beam angle [detail] => (FWHM) 16° ) [4] => Array ( [attribute] => Variable Flash Duration [detail] => 60µS to 30mS ) [5] => Array ( [attribute] => Power Input [detail] => 48VDC ) [6] => Array ( [attribute] => Peak Power Consumption [detail] => 70W ) [7] => Array ( [attribute] => Weight [detail] => 470g ) [8] => Array ( [attribute] => Enclosure [detail] => Impact resistant Makrolon Polycarbonate with 5251 Aluminium Face Plate ) [9] => Array ( [attribute] => Enclosure Finish [detail] => Matt Black Textured ) [10] => Array ( [attribute] => Face Plate Finish [detail] => Matt Black Anodised ) [11] => Array ( [attribute] => Power Input [detail] => 5VDC (250mA) ) ) [content] => ) ) ) [whats_included] => ) [2] => Array ( [acf_fc_layout] => cta_block [heading] => Join our waiting list [cta_type] => show_form [content] =>

If you would like you to know more before anyone else, fill in the form to join our waiting list. Be notified when we launch the new range of MultiFlashes.

[button_text] => Join Waiting List [scroll_to_target] => [button_form] =>

Tell us a little about your needs...

What kind of setup will the MultiFlash be used in? (required)

Face / Head scanningFull Body scanningObject scanningCreative PhotographyOther

Which feature are you interested in? (required)

Controllable flash duration and intensityRGB-controllable lightCross-Polarised lighting

Anything else you would you like to tell us?

[enable_padding_top] => 1 [enable_padding_bottom] => 1 ) )

Features & Functionality

Total control for maximum creativity.

Equipped with 3 independently controllable, high-powered LED light sources the ESPER MultiFlash is the only photogrammetry lighting on the market that allows you to control flash duration and intensity independently, offset accurately and precisely synchronise with your camera system.

Revolutionise your flash set-up

Whether you require one MultiFlash or 260. Whether you need every MultiFlash to all fire at the same time with the same intensity or for each MultiFlash to do something different. The ESPER MultiFlash has been designed from the ground up to be the most flexible, high-performance flashes around.

Microsecond synchronisation

Achieve microsecond synchronisation with your camera system via the ESPER ControllerBoxes contact closure inputs and outputs or via Genlock.

Programme, sequence and synchronise directly from your computer

When coupled with a single ESPER’s ControllerBox and the ESPER LightController Software 512 MultiFlashes can be programmed, sequenced and synchronised directly from a PC or Mac. The ESPER ControllerBox has contact closure inputs and outputs (for DSLR and Machine Vision), genlock input (for video cameras) there are also data outputs for programming the lights.

Technical Spec

  • Total Light Output

    2484 Lumen

  • Colour Temperature (CCT)

    5000K

  • Colour Rendering Index (CRI)

    Typ 92

  • Beam angle

    (FWHM) 16°

  • Variable Flash Duration

    60µS to 30mS

  • Power Input

    48VDC

  • Peak Power Consumption

    70W

  • Weight

    470g

  • Enclosure

    Impact resistant Makrolon Polycarbonate with 5251 Aluminium Face Plate

  • Enclosure Finish

    Matt Black Textured

  • Face Plate Finish

    Matt Black Anodised

  • Power Input

    5VDC (250mA)

Technical Spec

  • Total Light Output

    2484 Lumen

  • Colour Temperature (CCT)

    5000K

  • Colour Rendering Index (CRI)

    Typ 92

  • Beam angle

    (FWHM) 16°

  • Variable Flash Duration

    60µS to 30mS

  • Power Input

    48VDC

  • Peak Power Consumption

    70W

  • Weight

    470g

  • Enclosure

    Impact resistant Makrolon Polycarbonate with 5251 Aluminium Face Plate

  • Enclosure Finish

    Matt Black Textured

  • Face Plate Finish

    Matt Black Anodised

  • Power Input

    5VDC (250mA)
